TrailRush

In Stock

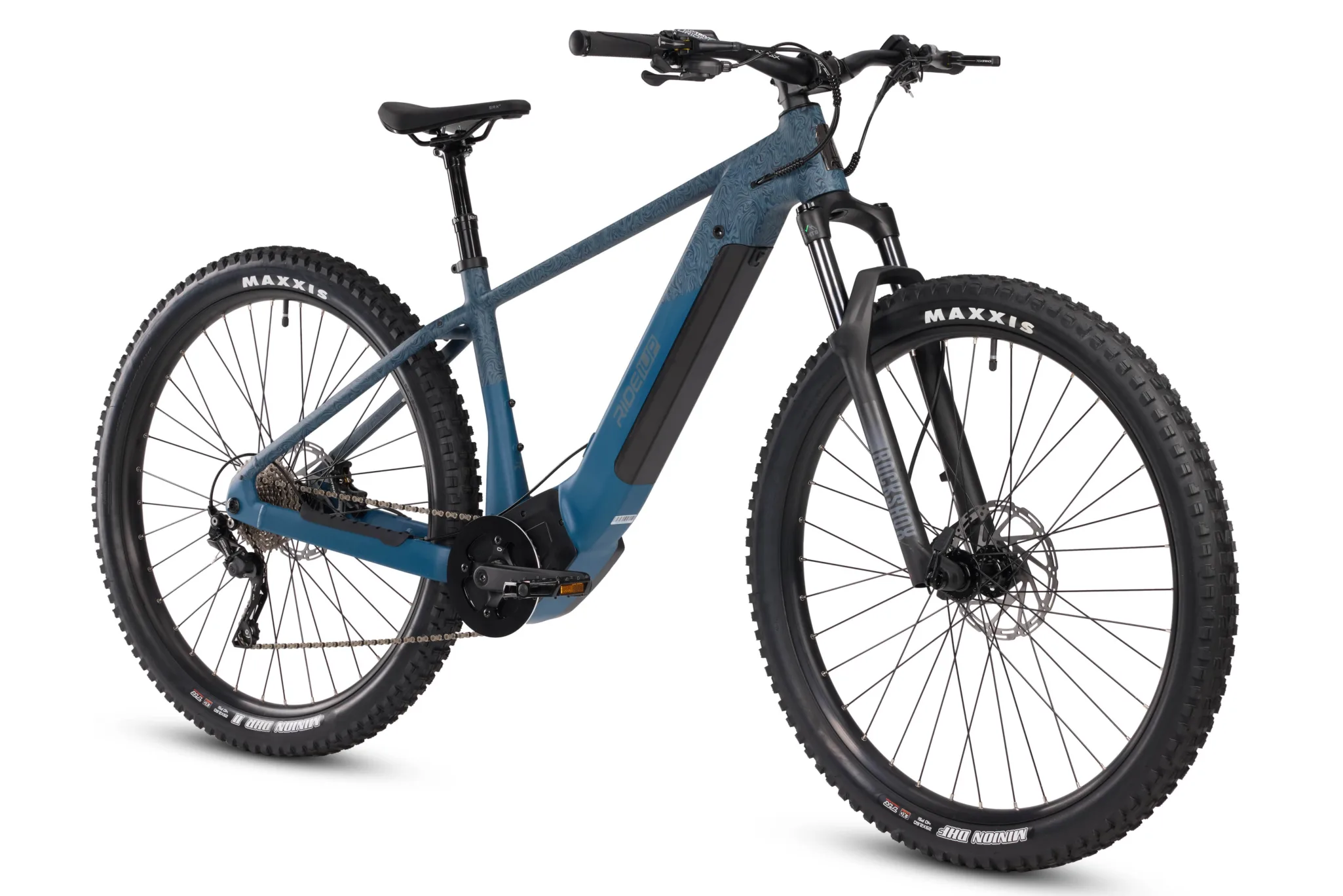

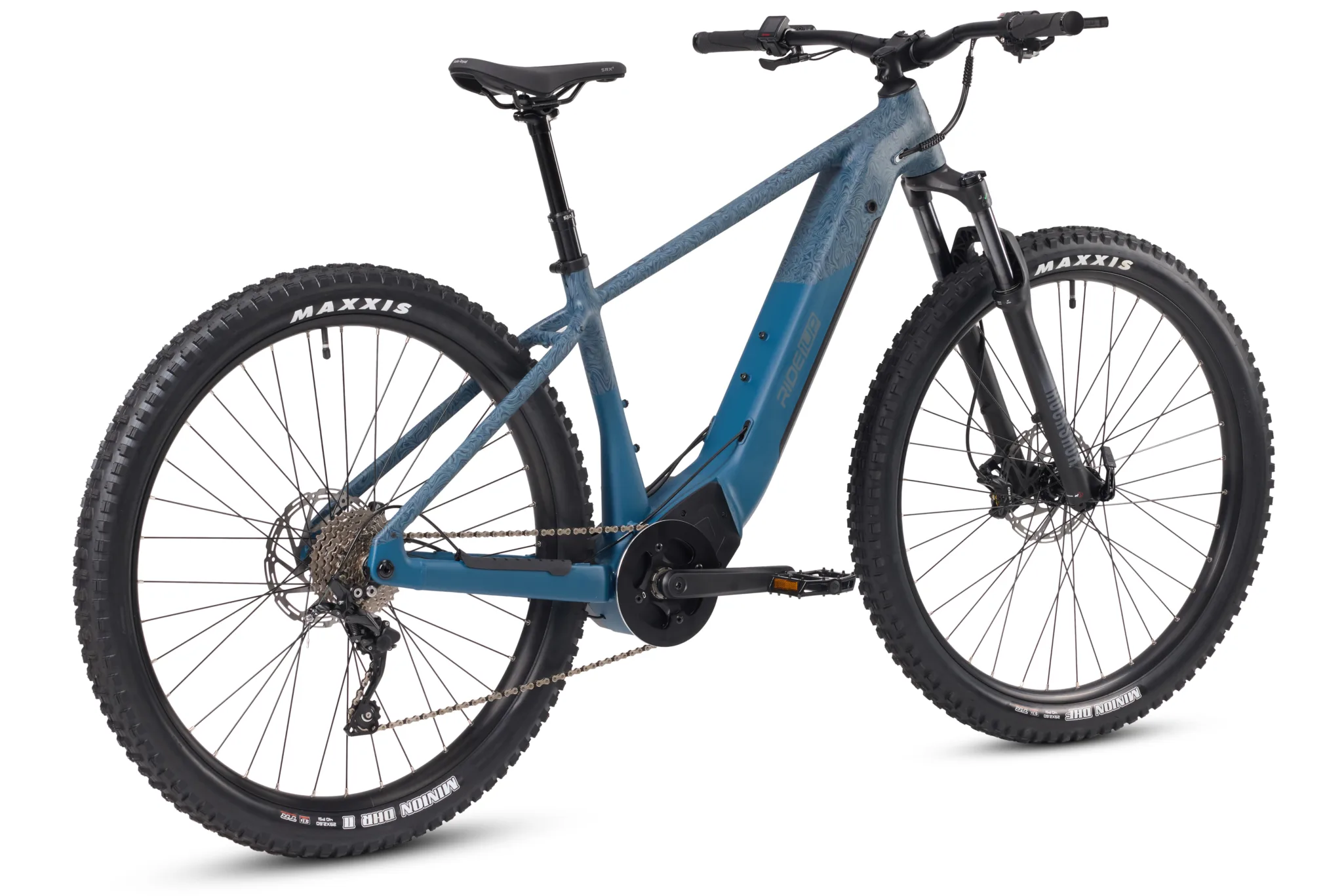

German Mid-Drive Motor eMTB

Frame Type ST
Medium
Large
Is this the right bike for me? Let's chat: 1-877-RIDE1UP
Pre-sale support hours

9:00 AM - 5:00 PM PST

Monday - Friday

8AM-12PM PST - Saturday

-

Features & Highlights

whats-photo

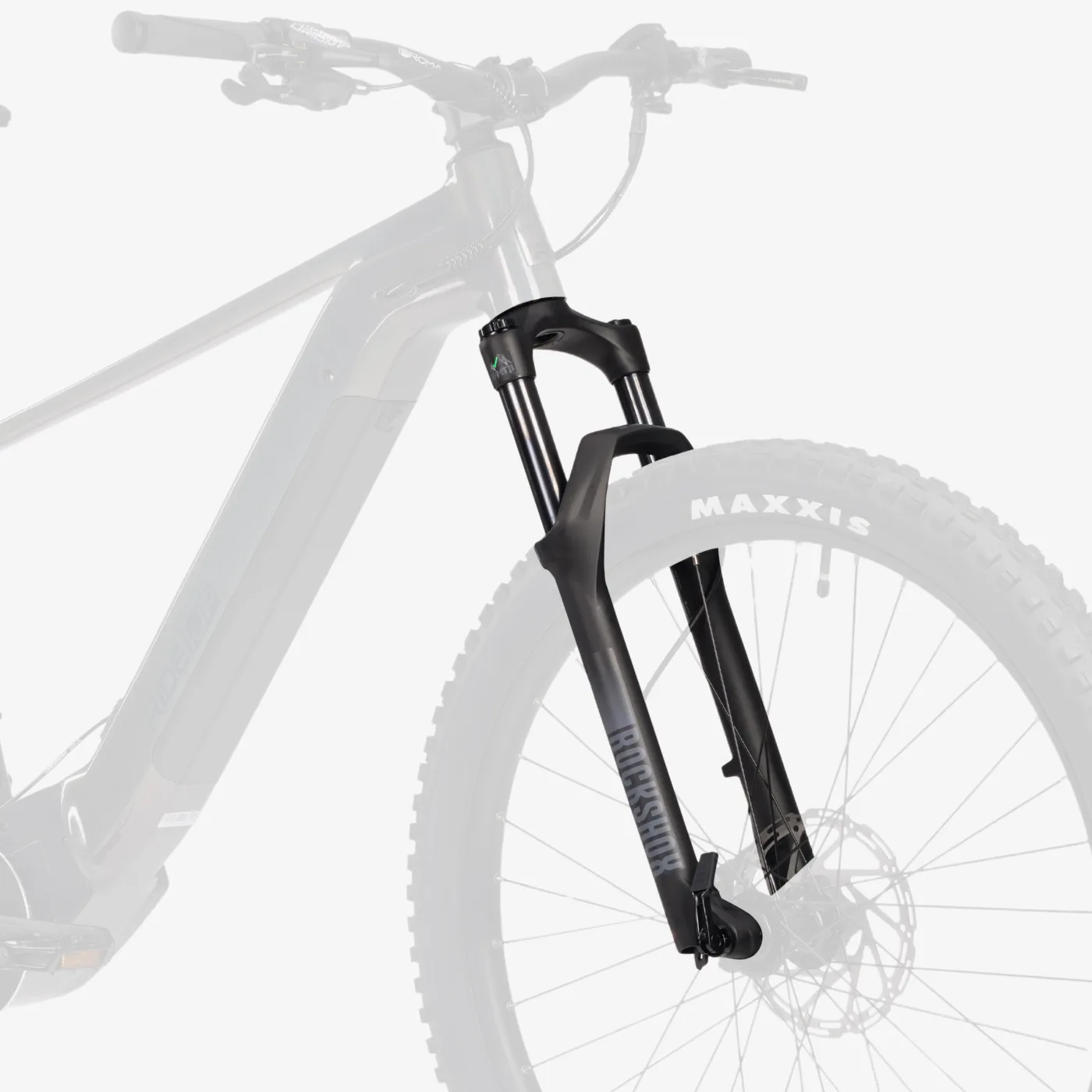

120mm Rockshox Judy Silver TK air suspension for maximum shock absorption and fatigue reduction on the road and off it.
whats-photo
Brose mid-drive motor with 90nm of torque. German-engineered, quiet, responsive, and intuitive. Perfect for complete control on the trails.
whats-photo

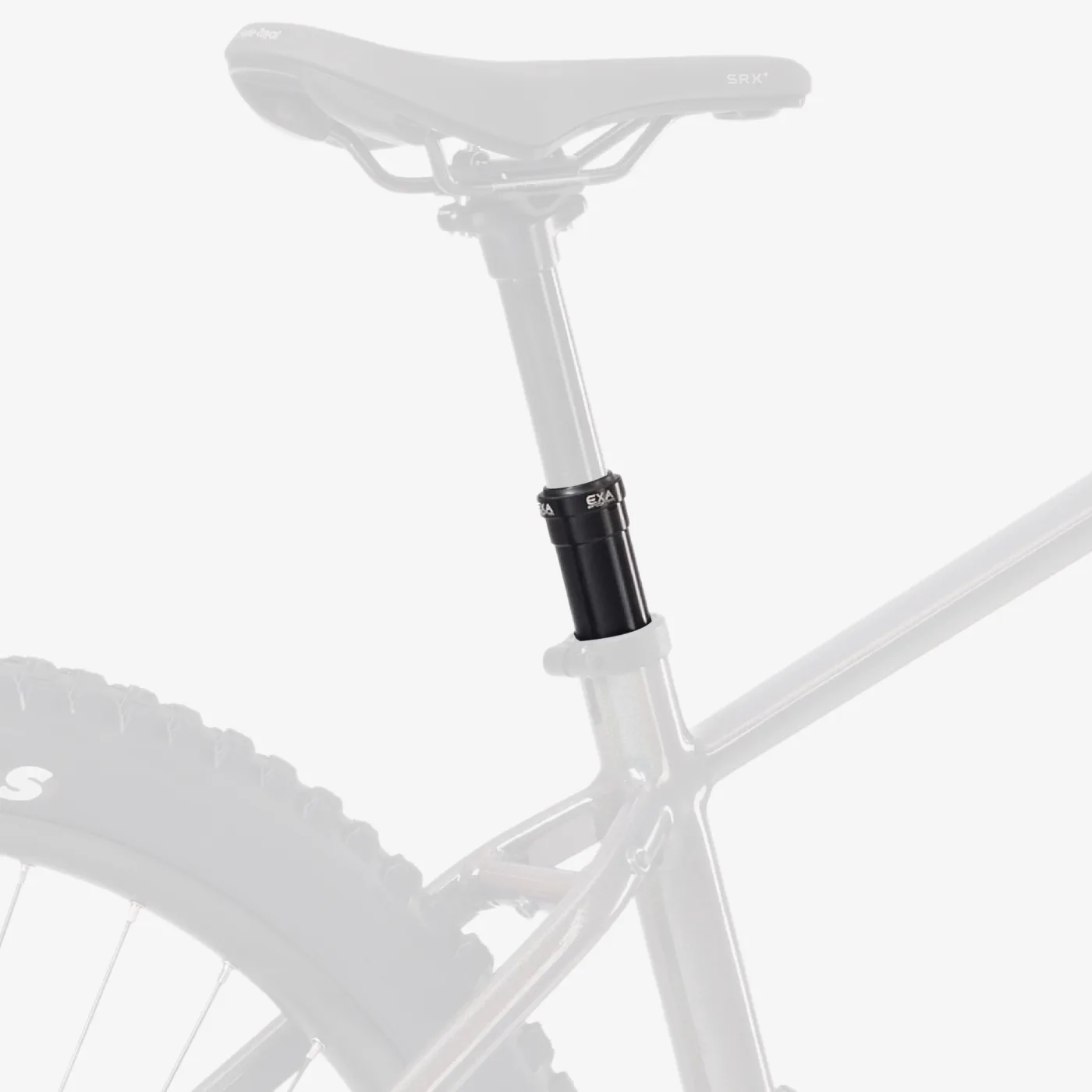

Exaform dropper post to quickly adjust saddle height on the fly for greater control, confidence, and agility on technical trails.
whats-photo

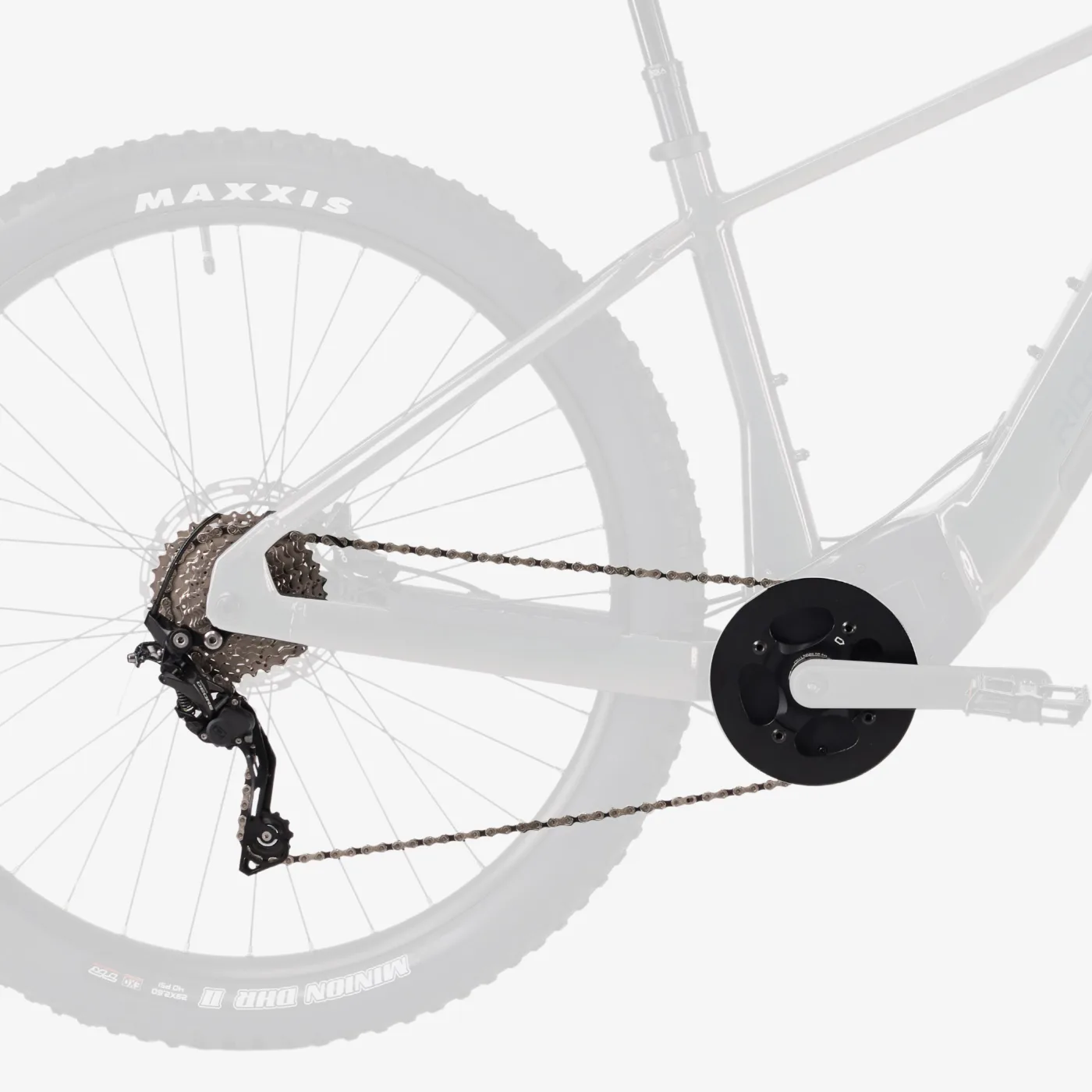

High-quality Shimano Deore drivetrain and gearset for optimal durability, longevity and performance.
whats-photo

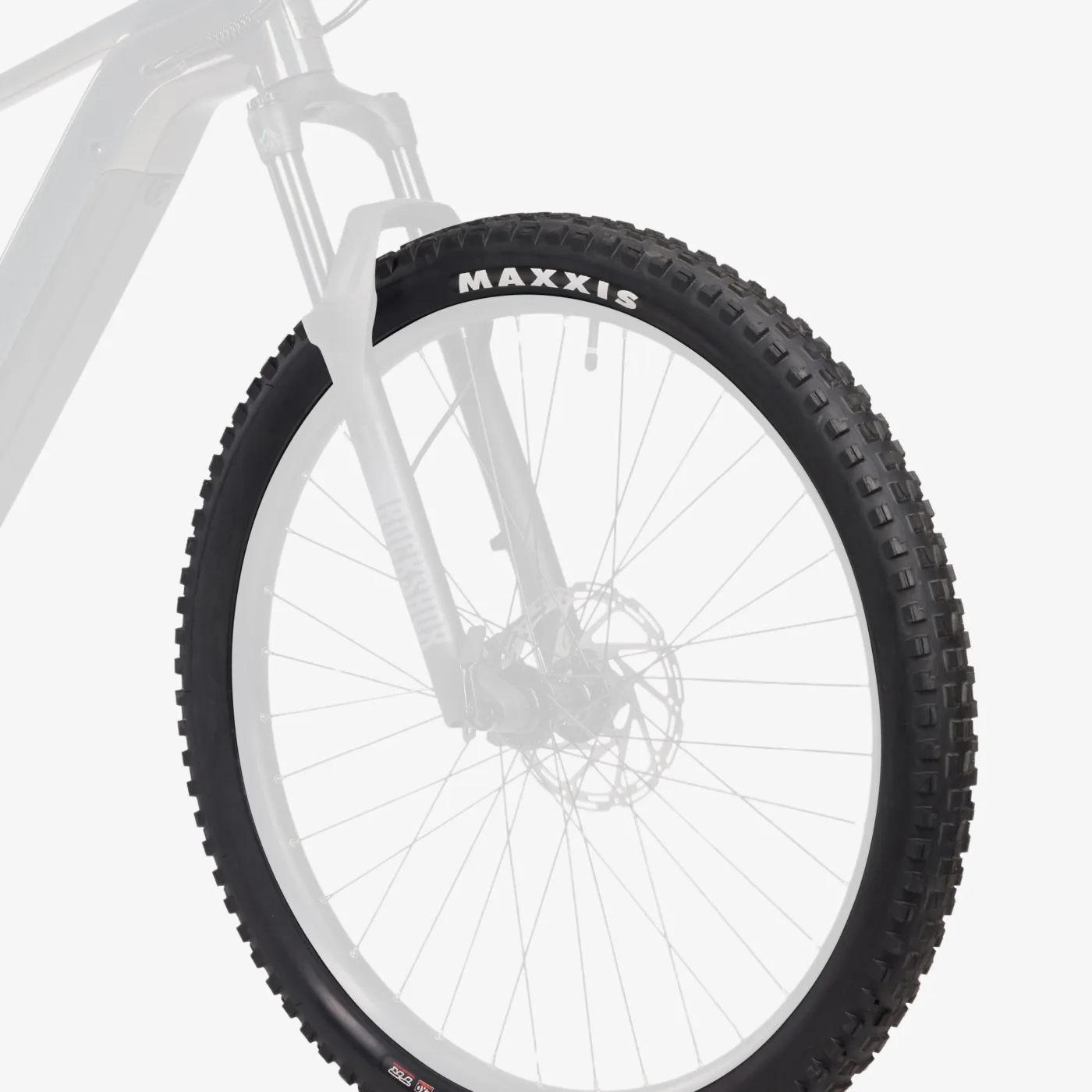

Tubeless-ready Maxxis Minion DHF/DHR 29"x2.6" tires for ultimate traction and maneuverability on the variable terrain.
whats-photo
Handlebar Mounted 1.5" LCD TFT display. 4 levels of Pedal Assist (PAS) and Advanced Metrics.
whats-photo
36V Two Amp Charger and Cable with Auto Shut-Off. LED Indicator Feature Provides Realtime Charging Status.
whats-photo

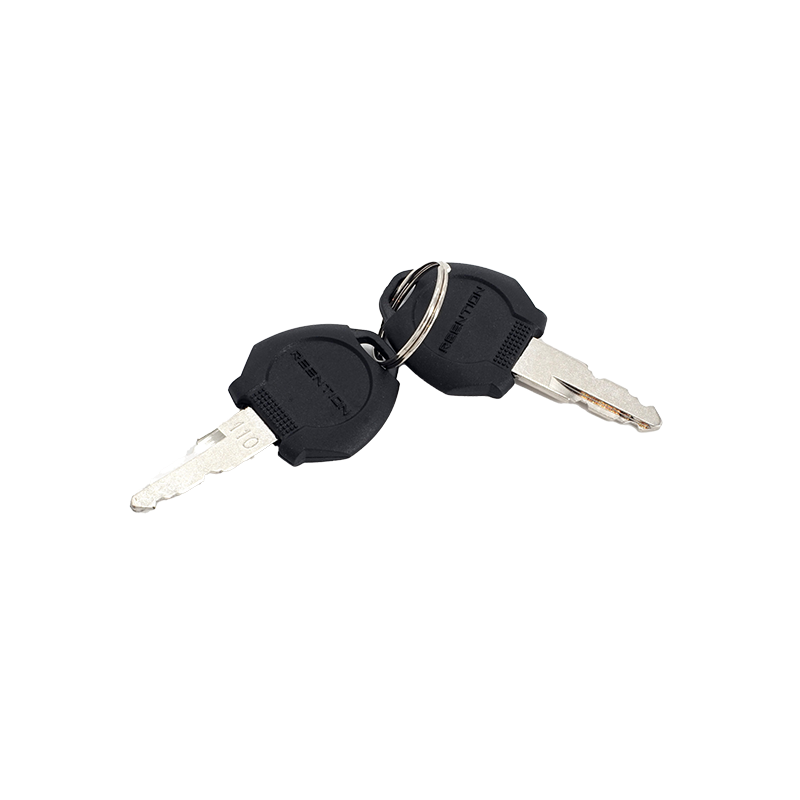

Two Keys for the Removable Integrated Battery System. Theft Protection Design - Battery Anxiety Begone!

Components & Tech Specs

minus plus
Motor
Motor

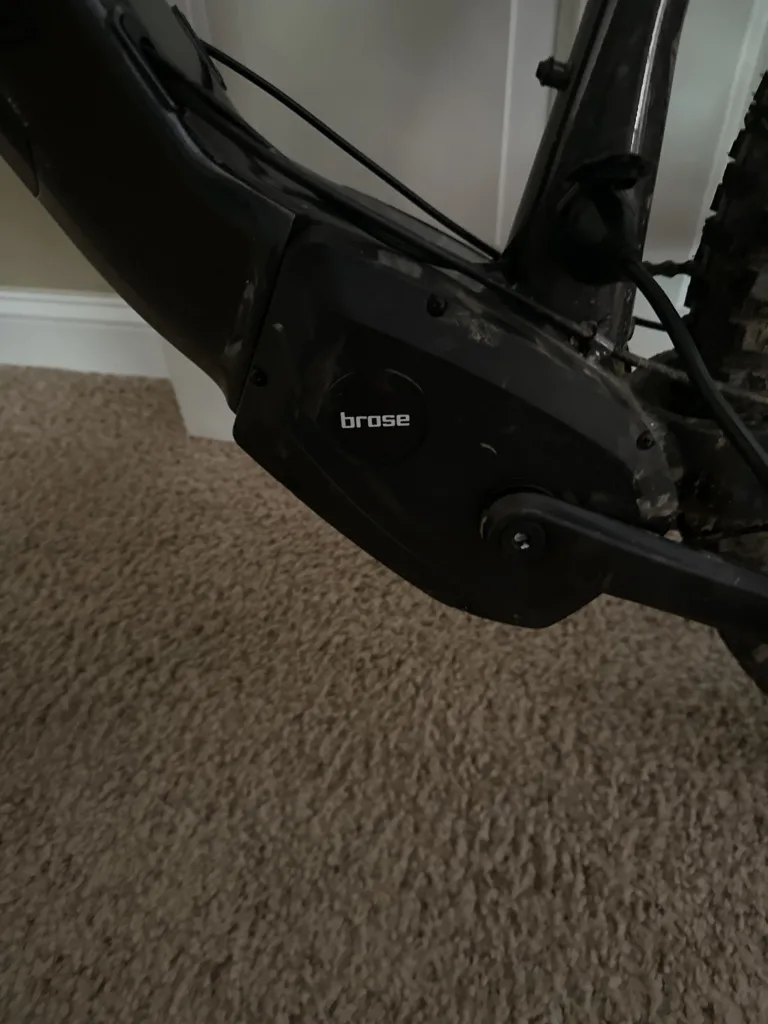

Brose TF Sprinter German made mid-drive motor with 90nm torque
Motor
Battery
36V 14Ah Phylion BN21, Samsung Cells with smart BMS
Motor
Controller
Brose Frame Integrated Controller
Motor
Display
Brose Display Allround, 1.5" Color
Motor
PAS Sensor
Brose Integrated Torque Sensor
Motor
Fork
120mm Rockshox Judy Silver TK Air Fork; Hydraulic Lockout, Adjustable Rebound
Motor
Dropper Post
150mm Exaform KSP900
Motor
Brakes

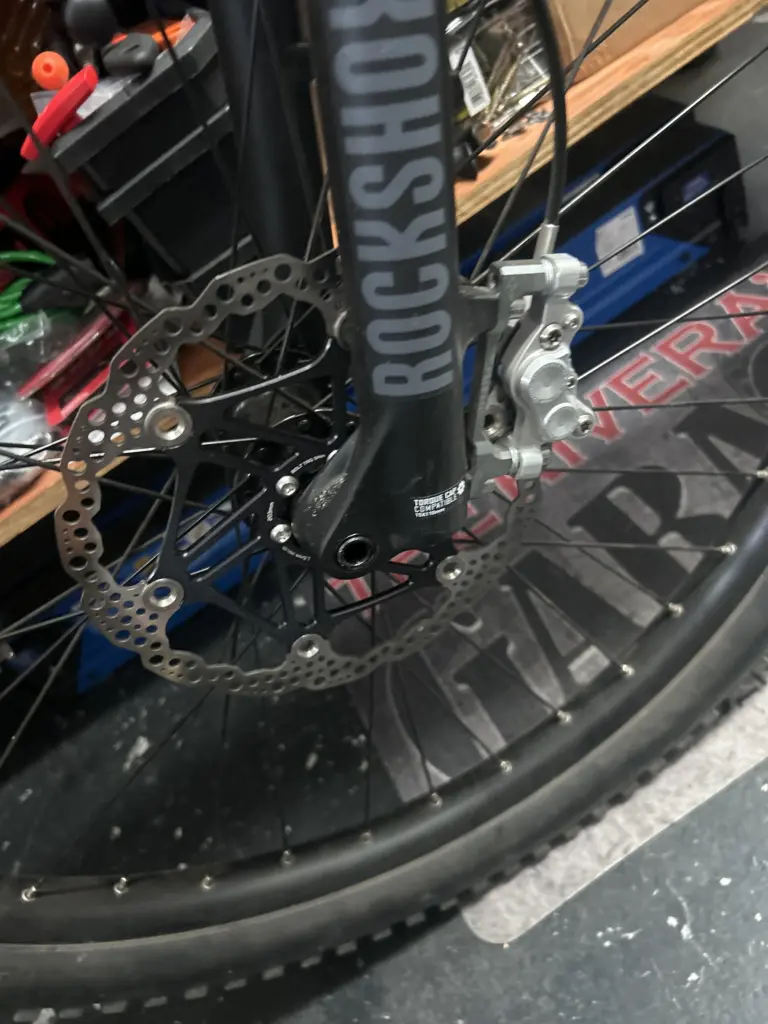

Tektro Orion HD-M745 Quad-Piston Brakes
Motor
Tires
Maxxis Minion Tubeless Ready DHF/DHR 29"x2.6"
Motor
Rims
Double-walled Aluminum (requires tape and valve for tubeless conversion)
Motor
Handlebars
780mm Width, 28mm Rise, 6° Sweep
Motor
Grips
Velo Silica Gel Ergonomic Grips
Motor
Shifters
Shimano Deore SL-M6000-R Rapidfire Plus
Motor
Gearing
38T Alloy Chainring
Motor
Cassette
Shimano HG500-10 11-36T
Motor
Derailleur
Shimano 10-Speed Deore M6000
Motor
Chain
KMC e10 Mid-Drive Chain
Motor
Spokes
Black Stainless Steel, 13G
Motor
Saddle
Selle Royal SRX
Motor
Stem
Toothless 0° Bore, 45mm Rise, 35mm Bar Clamp
Motor
Additional
Water Bottle Bosses and Chainstay Guard

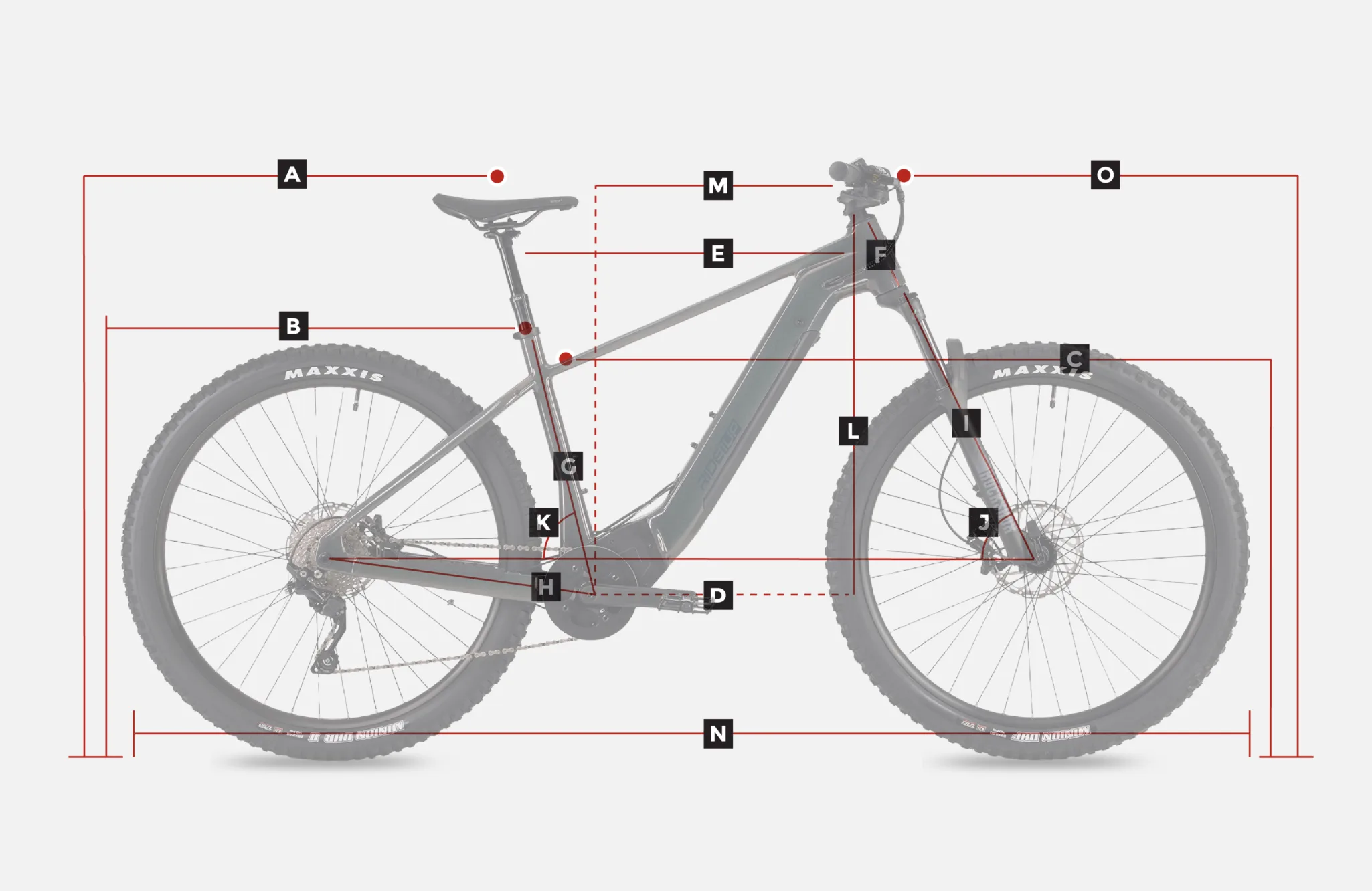

Dimensions & Sizing

minus plus
dim-img dim-img
LARGE
MED
Bike Weight
Weight Capacity
Rider Height range
A - Maximum Seat Height
B - Minimum Seat Height
C - Stand-over Height
D - Wheelbase
E - Top Tube Length
F - Head Tube Length
G - Seat Tube Length
H - Chainstay Length
I - Fork Length
J - Head Tube Angle
K - Seat Tube Angle
L - Stack
M - Handlebar Reach
N - Total Length
O - Handlebar Height
58 lbs 58 lbs
350 lbs 350 lbs
5'10"-6'4" 5'10"-6'4"
1040mm 40.9in
890mm 35.0in
820mm 32.3in
1247mm 49.1in
627mm 24.7in
130mm 5.1in
480mm 18.9in
470mm 18.5in
540mm 21.3in
66.5° 66.5°
74.5° 74.5°
478mm 18.8in
520mm 20.5in
2010mm 79.1in
1067mm 42.07in
57 lbs 57 lbs
350 lbs 350 lbs
5'5"-5'10" 5'5"-5'10"
1010mm* 39.8in
860mm* 33.9in
815mm 32.1in
1216mm 47.9in
600mm 23.6in
120mm 4.7in
450mm 17.7in
470mm 18.5in
540mm 21.3in
66.5° 66.5°
74.5° 66.5°
451mm 17.8in
520mm 20.5in
1979mm* 77.9in
1062mm* 41.8in
CONVERT MEASUREMENTS

Assembly & Support

minus plus

Bikes in stock ships in 1 business day. Email tracking provides transit and delivery estimates once shipped.

Package Size is 64.5"x35.5"x10" and just under 81 lbs. Your electric motor bike will arrive 85% assembled (electronics are pre-assembled).

FAQ'S

minus plus
When will the TrailRush ship out? minus plus

In-stock TrailRush electric bikes require extra processing time and will ship out within 1 business days of placing your order. The TrailRush is shipped via FedEx to preserve quality and reduce shipping related issues.

After your order has processed and left our warehouse, please expect approximately 5-10 business days for additional transit time and delivery. Delivery appointment is required and delivery times are dependent on availability by local distribution centers.

Are the bikes water-proof? minus plus

The bikes are not water-proof, they are water-resistant with a rating of IPX4. While we do not recommend leaving the bikes out in the rain or riding in the rain or other hazardous conditions due to personal safety, the bikes can handle low pressure exposure to water. Do not submerge in water or expose to pressurized air or water. Storing your ebike in the elements could shorten the lifespan of the electric bike.

Can I test ride a bike? minus plus

We are a direct-to-consumer eBikes company both in pricing and strategy. Riders will generally pay a premium for the ability to test-ride eBikes through a dealer. However, our bikes have been thoroughly tested by top reviewers such as Electric Bike Review, Electric Bike Report, Cycling Weekly, Clean Technica, Electrek, and many others who have published their reviews on YouTube.

Can I upgrade the battery? minus plus

Unfortunately, this electric bike frame’s 14ah battery pack is the largest available. If you would like extra range, you can purchase a second battery pack here.

Can I switch the handlebars to another model? minus plus

No. The variations you see on the site are the only options we have for our ebikes.

Can you ship to _______? minus plus

We only ship within the US and Canada. The contiguous United States is FREE. Shipping to Canada is $400. Currently, not shipping to Hawaii. We are not responsible for any additional tariffs charged by your local government which is often applied after importing. Unfortunately, we are not able to ship our eBikes directly to Europe or Alaska at this time. You can use a shipping forwarder like ShopUsa.com to reach your country.

What Does Mid-Drive Mean on an E-Bike? minus plus

A mid-drive electric bike means that the motor of the electric bike is mounted in the center of the frame near the bottom bracket, providing power to the crank. This is in contrast to hub motor designs, where the electric motor is in the front or back wheel.

The mid-drive system provides more efficient power transfer, allowing the rider to use the gears of the electric bike for a more natural riding experience and electric motor performance. The position of the motor also allows for a more stable ride as the weight is distributed closer to the center of gravity, as well as more responsive handling with greater torque and hill-climbing ability.

How Fast Can a Mid-Drive E-Bike Go? minus plus

The speed of a mid-drive electric bike is dependent on several factors, such as the power output of the motor and battery capacity. Generally speaking, Class 1 and Class 2 eBikes stop assisting the rider at twenty MPH, while Class 3 eBikes, like the TrailRush, will provide assistance up to twenty-eight MPH. This eBike system has incredible performance for all riders.

Are Mid-Drive Electric Bikes More Efficient? minus plus

Yes, mid-drive eBikes are more efficient than hub motor designs. This is mainly because the electric motor is able to use the bike’s gears and the power is transferred directly to the crank instead of the wheels. This means that you can get more out of each full charge with this electric bike. Keep in mind that although mid-drive motors use the bike’s gears, this doesn’t mean you can’t ride your e-bike if the battery runs out. You just won’t have the extra power that the electric motor provides. EBikes can still be ridden without the electric motor just like you would ride a traditional bike.

How Long Do Mid-Drive E-Bike Motors Last? minus plus

The lifespan and performance of a mid-drive electric bike motor depend on the components’ quality and how it is used. Generally, you can expect your electric bike motor to last anywhere between three and ten years; just make sure to keep up with regular maintenance and follow the manufacturer’s guidelines.
This includes keeping your electric motor dry, as mid-drive motors tend to rust faster than their hub drive counterparts. Protecting and taking care of your eBikes will improve their lifespan and maintain their performance.

Is a Mid-Drive E-Bike Better? minus plus

It depends on what kind of riding experience you are looking for. For some, a mid-drive electric bike is often considered to be the better option because they offer more efficient power transfer, better hill climbing performance, and more responsive handling by having a more natural riding feel as you pedal.
Additionally, they tend to be lighter than hub motor designs, making them a better choice for longer rides. These eBikes are also more reliable, making them a great option for regular use.
However, they tend to be the most expensive e-bike motor design, so if you’re on a budget, a hub electric motor may be a better option. Ultimately, this depends on your individual needs and preferences.

Do Any Mid-Drive E-Bikes Have a Throttle? minus plus

Yes–some mid-drive eBikes do have a throttle. However, most big electric bike companies tend to rely solely on pedal-assist for their mid-drive eBikes, because when you install a throttle on a mid-drive electric bike, the chain wear and tension might be too great. This could lead to a broken chain and render the bike inoperable, hindering the overall performance.
